Cold formers
Single stage coldformers
Multi stage coldformers with 4,5 and 6 stations

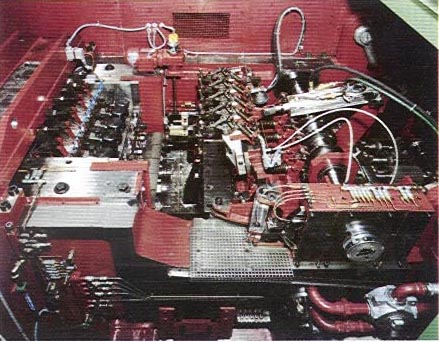

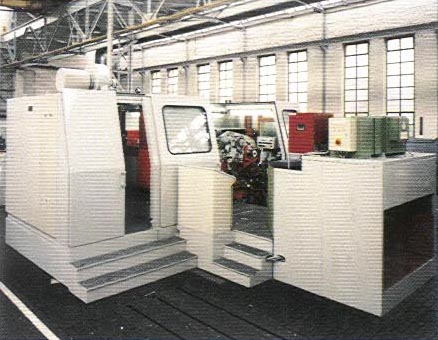

Multi stage coldformers with 4,5 and 6 stations
　








Model

H 430
H 445
H 470
H 530
H 545
 H 570
H 645
Number of forming stages

4
4
4
5
5
5
5
Nominal force
kN
300
450
700
300
450
700
450
Wire diameter
mm
2-8
3-10
4-12
2-8
3-10
4-12
3-10
Stroke rate, max
mm
300
300
250
300
300
250
300
Segment length adjustable
mm
2-57
3-57
5-80
2-57
3-57
5-80
3-57
Ejector stroke on die-plate face, adjustable
mm
4 - 51
4 - 51
5 - 71
4 - 51
4 - 51
8 - 71
4 - 51
Ejector stroke on die face, max.
mm
25
25
35
25
25
35
25
Die-plate holding bore, max.
mm
55
55
65
55
55
65
55
Die holding bore, max.
mm
40
40
55
40
40
55
40
Max. upsetting diameter before die-plate
mm
16
18
23
16
18
23
18
Motor output approx.
kW
15
28
40
15
28
40
28
Footprint approx.
mm
2,9 x 2,1
2,9 x 2,1
4,0x 2,3
3 x 2,1
3 x 2,1
4 x 2,4
3,1 x 2,1
Weight approx.
kg
7 800
8 000
11000
8 500
8 700
12 000
9
200

Model

F 15
F 25
F 35
Number of forming stages
5
5
5
Nominal force
kN
1000
1600
2400
Wire diameter
mm
7 - 16
9 - 20
12 -26
Stroke rate, max
mm
250
215
175
Segment length adjustable
mm
7-80
9-90
12-110
Ejector stroke on die-plate face, adjustable
mm
4 - 81
5 - 91
5 - 11
Ejector stroke on die face, max.
mm
30
40
50
Die-plate holding bore, max.
mm
85
100
110
Die holding bore, max.
mm
70
75
85
Max. upsetting diameter before die-plate
mm
23
30
36
Motor output approx.
kW
40
60
100
Footprint approx.
mm
3,8 x 2,4
4,5 x 2,7
5,5 x 3,1
Weight approx.
kg
13 000
23 000
32 000

Model

K 24
K 44
K 54
K 64
K45
K 65
K 55
Number of forming stages
4
4
4
4
5
5
5
Nominal force
kN
1000
1800
2500
36000
1800
2500
5600
Wire diameter
mm
7 - 16
18 - 40
8 - 22
18 - 40
18 - 20
18 - 22
18 - 40
Stroke rate, max
mm
225
150
130
90
150
130
90
Segment length adjustable
mm
7-218
9 - 150
12-180
18 - 290
9 - 150
12 - 180
12 - 290
Ejector stroke on die-plate face, adjustable
mm
4 - 101
4 - 131
5 - 160
8 - 231
4 - 131
5 - 160
8 - 231
Ejector stroke on die face, max.
mm
30
45
58
80
45
58
80
Die-plate holding bore, max.
mm
85
100
120
180
100
120
180
Die holding bore, max.
mm
60
65
90
130
65
75
130
Max. upsetting diameter before die-plate
mm
23
30
42
53
30
42
53
Motor output approx.
kW
40
60
100
200
60
100
200
Footprint approx.
mm
4,2 x 2,4
5,5 x 2,4
6,0 x 2,85
8,2 x 3,4
5,0 x 2,55
6,0 x 3,0
8,2 x 3,6
Weight approx.
kg
19 000
26 000
38 000
86 000
28 000
41 000
98 000
