Straighteners
2-roll straightener for black & bright material
Multi roll straighteners for black material
Multi roll Straighteners for tubes
Roll straightener for profiles

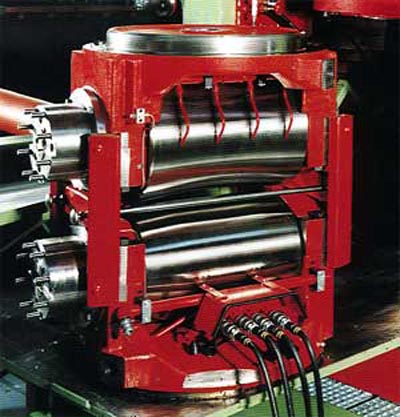

2-roll straightener for black & bright material




Model
 WRP
10 BF
WRP
25 BF
WRP
40
BF

WRP
60
BF

 WRP
60/80
B60 S		 WRP
80/100
B80 S		 WRP
100/120
B100 S		 WRP
125/160
B125 S		 WRP
160/200
B160 S
Diameter range, WRP B (mm)
3-10
6-25
8-40
10-60
10-80
12-100
20-120
22-160
35-200
Diameter range, WRP S (mm)

10-60
12-80
20-100
22-125
35-160
Straightening speed (m/min)*
210
210
210
120
75
75
60
50
40
Angle adjusting range (degrees)

60
60
50
40
30
Straightening force (kN)
12-25
12-25
12-24
12-24
12-24
12-22
12-22
11-21
11-21
Dia. where Rz = 450 N/mm2 (mm)
10
90
220
500
600
1050
1510
2600
4850
Dia. where Rz = 1000 N/mm2 (mm)
10
25
40
60
80
96
120
152
200
Depends on ingoing material, in particular on the ovality
10
22
35
56
60
75
91
116
155


주요공급처
    - 진양공업, 동부제강, 동일산업, 대한제강, YDC, 대원강업, INI steel, 유창정밀, 한라공조,
      창원특수강등

담당자
    - 신병철 이사, 이민석 차장
