Cold formers
Single stage coldformers
Multi stage coldformers with 4,5 and 6 stations

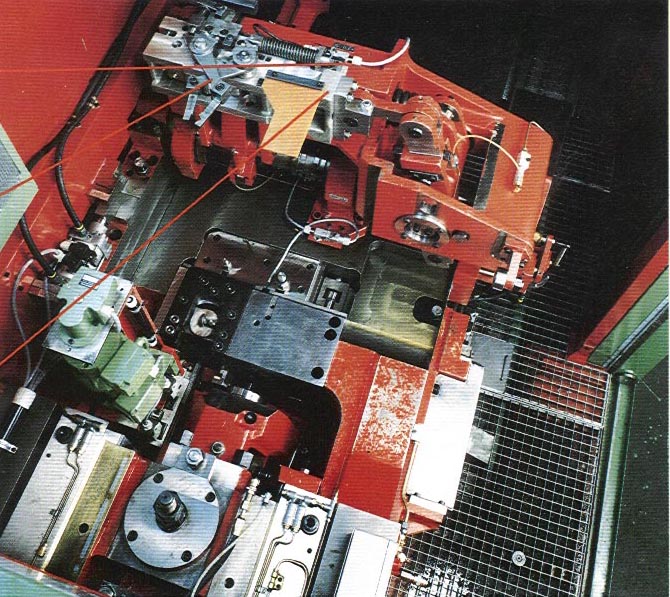

Single stage coldformers






Model

S 110
S 210
S 310
Number of forming stages

1
1
1
Nominal force
kN
1200
1900/2200
4000
Wire diameter
mm
8 - 20
12 - 28
15 -38
Stroke rate, max
mm
220
130
100
Segment length adjustable
mm
1 x d - 40
1 x d - 60
1 x d - 80
Ejector stroke on die-plate face, adjustable
mm
40
55
75
Ejector stroke on die face, max.
mm
35
50
50
Die-plate holding bore, max.
mm
105
150
225
Die holding bore, max.
mm
105
150
175
Max. upsetting diameter before die-plate
mm
35
45
65
Motor output approx.
kW
40
60 / 100
150
Footprint approx.
mm
4,4 x 2,1
5,1 x 2,9
8,5 x 3,5
Weight approx.
kg
18 000
29 000
50 000



담당자
    - 신병철 이사, 이민석 차장
