Grinding machine

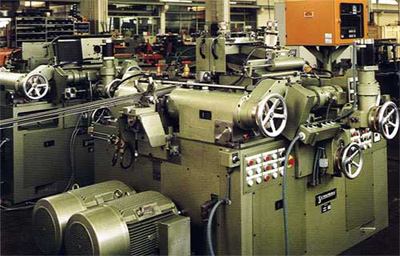

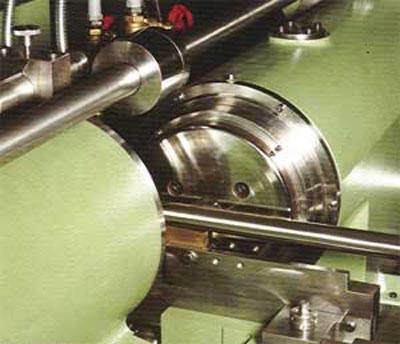

Centerless Grinding & polishing machine
Centerless regulation wheel grinder

Centerless Grinding & polishing machine




Centerless grinding and polishing machine - size I
Working range:
Standard version
2-25 mm dia.
nonstandard version
1-25 mm dia.
Bar length:
Minimum
1100 mm
Maximum
Optional
Quantity
2
Peripheral speed
35/45/60 m/sec
Drive output per grinding wheel
22 kW (30 kW)
Dimension, maximum:outer diameter
400 mm
Boring diameter
203,2 mm
Width
220 mm
Bearings:precision roller bearings with oil mist lubrication

Dressing device: dressing speed infinitely variable,hydraulic drive (0.37 kW)

Conveying and polishing unit:
Passage speed:infinitely variable Control range of the transmission 1:10The conveying system is designed for a passage speed of 2 to 30 m/min (diameter-dependent)For non-standard applications higherpassage speeds are possible
Polishing force:
10 000 N maximum

Centerless grinding and polishing machine - size II
Working range:
8-35 mm dia.
2-25 mm dia.
nonstandard version
1-25 mm dia.
Bar length:
Minimum
1800 mm
Maximum
Optional
Quantity
2
Peripheral speed
35/45/60 m/sec
Drive output per grinding wheel
37 kW (45 kW)
Dimension, maximum:outer diameter
500 mm
Boring diameter
250 mm
Width
300 mm
Bearings:precision roller bearings with oil mist lubrication
Dressing device: dressing speed infinitely variable,hydraulic drive (0.37 kW)
Conveying and polishing unit:
Passage speed:infinitely variable Control range of the transmission 1:9The conveying system is designed for a passage speed of 1 to 30 m/min (diameter-dependent) Higher passage speeds are possible for non-standard applications
Polishing force:
30 000 N maximum

Centerless grinding and polishing machine - size III
Working range:
15-100 mm dia.
Bar length:
Minimum 1940mm
Maximum Optional
Quantity 2
Peripheral speed 35/45/60 m/sec
Drive output per grinding wheel 75 kW
Dimension, maximum:outer diameter 600 mm
Boring diameter 305 mm
Width 300 mm
Bearings:precision roller bearings with oil mist lubrication
Dressing device: dressing speed infinitely variable,hydraulic drive (0.37 kW)
Conveying and polishing unit:
Passage speed:infinitely variable Control range of the transmission 1:6The conveying system is designed for a passage speed of 2 to 25 m/min (diameter-dependent)Higher passage speeds are possible for non-standard applications
Polishing force:
30 000 N maximum
