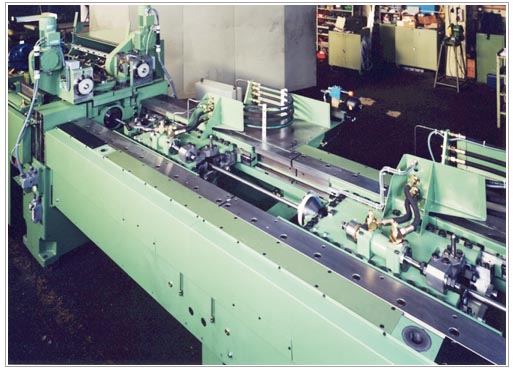

Combined Drawing Machines for steel
Tiltable 2 crown pay off reel
Coil preparation tables and feeder systems
Prestraightener(Horizontal+Vertical)
Push pointer & drawing device
Roller type straightener with Eddy current tester
Hydraulic impact shear
Box type tube guide
Straightening & Polishing machine
2 way delivery table



SCHUMAG combined drawing machine series B
Machine model

max. dia. mm solid

min.
dia. mmsolid

max. dia. mmtube

max. A/F
mm
square

max. A/F
mm
hexagonal

max.
E
mm
flat
Vz
m/min
Fz
kN
O B/2
8
2
16
7
8
12
120/100
16/20
I B/3
12
5
28
10
11
18
120/100
25/33
I B/5
16
5
22
12
14
20
100/80
40/50
I B/8
22
6
30
16
20
24
100/80
65/80
II B/15
32
10
35
25
27
38
100/80
120/150
III B/20
35
10
38
26
28
400
100/80
160/200
III B/25
42
19
45
36
40
52
80/60
200/250
IV B/40
55
20
76
45
50
70
80/60
330/400

SCHUMAG combined drawing machine series D
Machine model

max. dia. mm solid

min.
dia. mmsolid

max. dia. mmtube

max. A/F
mm
square

max. A/F
mm
hexagonal

max.
E
mm
flat
Vz
m/min
Fz
kN
I D
16
5
32
12
14
20
150/120
40/50
II D
22
6
30
16
20
24
150/120
65/80
III D
32
10
35
25
27
38
120
150

SCHUMAG combined flat drawing machines
Machine model
mm, flat
Vz
m/min
Fz
kN
I B-F
15 x 1,7 min.40 x 5 max.
60
50
II B/F
25 x 2 min.100 x 10 max.
40
170
