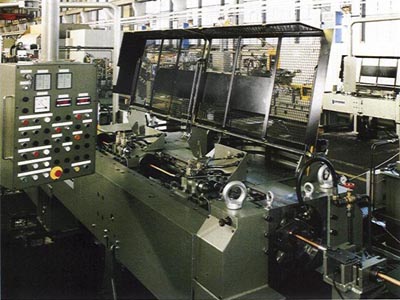

Combined drawing
machines for nonferrous profiles |
SCHUMAG combined drawing machine series B |
Machine model |
max. dia. mm solid |
min.
dia. mmsolid |
max. dia. mmtube |
max. A/F
mm
square |
max. A/F
mm
hexagonal |
max.
E
mm
flat |
Vz
m/min |
Fz
kN |
O B/2 |
8 |
2 |
16 |
7 |
8 |
12 |
120/100 |
16/20 |
I B/3 |
12 |
5 |
28 |
10 |
11 |
18 |
120/100 |
25/33 |
I B/5 |
16 |
5 |
22 |
12 |
14 |
20 |
100/80 |
40/50 |
I B/8 |
22 |
6 |
30 |
16 |
20 |
24 |
100/80 |
65/80 |
II B/15 |
32 |
10 |
35 |
25 |
27 |
38 |
100/80 |
120/150 |
III B/20 |
35 |
10 |
38 |
26 |
28 |
400 |
100/80 |
160/200 |
III B/25 |
42 |
19 |
45 |
36 |
40 |
52 |
80/60 |
200/250 |
IV B/40 |
55 |
20 |
76 |
45 |
50 |
70 |
80/60 |
330/400 |
SCHUMAG combined drawing machine series D |
Machine model |
max. dia. mm solid |
min.
dia. mmsolid |
max. dia. mmtube |
max. A/F
mm
square |
max. A/F
mm
hexagonal |
max.
E
mm
flat |
Vz
m/min |
Fz
kN |
I D |
16 |
5 |
32 |
12 |
14 |
20 |
150/120 |
40/50 |
II D |
22 |
6 |
30 |
16 |
20 |
24 |
150/120 |
65/80 |
III D |
32 |
10 |
35 |
25 |
27 |
38 |
120 |
150 |
SCHUMAG combined flat drawing machines |
Machine model |
mm, flat
|
Vz
m/min |
Fz
kN |
I B-F |
15 x 1,7 min.40 x 5 max. |
60 |
50 |
II B/F |
25 x 2 min.100 x 10 max. |
40 |
170 |
