In-line bright steel centers for bars In-line wire turning machines Straighteners Cold formers Spare parts


Straighteners
2-roll straightener for black & bright material
Multi roll straighteners for black material
Multi roll Straighteners for tubes
Roll straightener for profiles

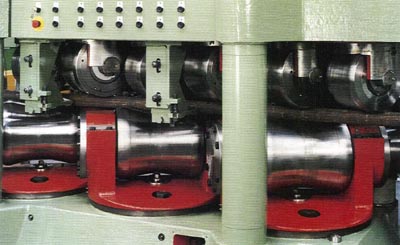

Multi roll straighteners for black material



Model
 VRUWN 30
VRUWN 60
VRUWN 75

VRUWN 90

 VRUWN 120 VRUWN 160
Working range of the machine with an apparent yielding point of o s = 800 N/mm 2 , mm dia
3-10
15 - 60
20 - 75
25 - 90
40 - 120
50 -160
Straightening speeds m/min
 37/50/75 37/50/75 37/50/75 33/45/65
22/30/45
15/20/30
Output of the drive motors kW/rpm -1
11/1500
45/1500
75/1500
90/1500
110/1500
132/1500


  주요 공급처

     -. 동일산업, 대한제강, INI steel, 창원특수강 등
