Grinding machine
Centerless Grinding & polishing machine
Centerless regulation wheel grinder

Centerless regulation wheel grinder

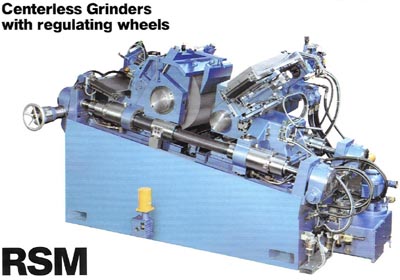

Centerless cylindrical grinders RSM 50 and RSM 60

RSM 50
RSM 60
Opening between new wheels
mm
1-125 2-200
Grinding wheel
Max. diameter
mm
500
600
Max. width without relief
mm
250
400
Boring
mm
254
304.8
Peripheral speed
m/sec
35/45/60
35/45/60
Grinding motor
kW
15-30
50-110
Adjustability without wide liftout
mm
155
200
Wide liftout
mm
60
60
Regulating wheel
Max. diameter
mm
300
350
Boring
mm
150
203.2
Rotary speed
mm
15-300
15-300
Inclination
degrees
+4/-10
+2/-10
Horizontal swing
degrees
±2
±1
Adjustability without wide liftout
mm
125
150
Wide liftout
mm
0-60
0-60
Axial adjustability
mm
+25/-10
+25/-10
Height adjustment of the support rail
mm
160
160
Height up to wheel center
mm
1100
1100
Bed length
mm
1800
2290
Bed width
mm
950
1100
Weight
kg
ca. 4500
ca. 9000



담당자
    - 이민석 과장, 천혜원 사원
