Level winders






Technical specifications

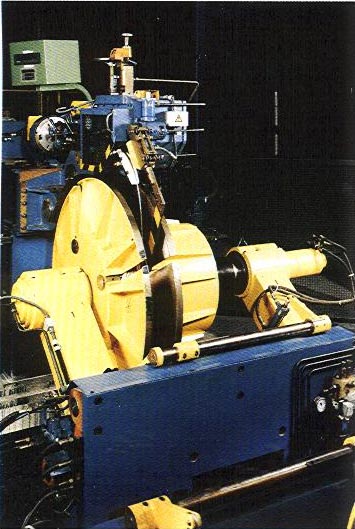

Single winder

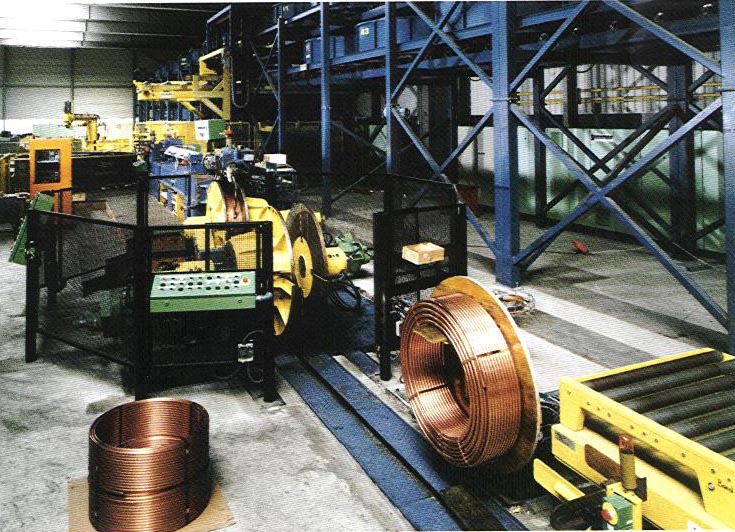

Doubler winder
Passage center above floor
1480 mm
1590 mm
Winding speed, max
15 - 500 m/min
15 - 500 m/min
Tube diameter
(4) 6 - 22 mm
(4) 6 - 22 mm
Coil inner diameter standard dia. 610
500 - 750 mm
500 - 750 mm
Coil outer diameter, max.
1150 mm
1230 mm
Coil width*
100 - 300 mm
100 - 400 mm
Coil weight, max.
250 kg
350 kg
Deviating versions on request
* Binding device from 110 mm width upwards
